GOLMAR
|
|
|
Golmar have a comprehensive range of audio and video entry systems that operate
on as little as 2 wires, so if you are short of cores or just want to upgrade
audio to video entry, they will have a solution for you. |
|
|
|
Video Entry |
|
|
|
|
|
|
 . |
Anti vandal video entry system is available in 2 wire, 5 wire or 3 cores and
coax configurations and is available in colour or black and white versions and a
choice of two durable front panels |
|
|
|
|
The Villas 2 wire black and white video entry kit is a new addition to the
range, ideal for upgrading from an audio entry system |
 |
|
|
|
|
  |
The Stadio kit available in black and white or colour versions, wiring is either
3 cores and coax or 4 wire twisted pair |
|
|
|
|
Audio Entry |
|
|
|
|
|
|
  |
Anti vandal audio kit available in standard 5 wire or 2
wire configuration. With one or two button front panels |
|
|
|
|

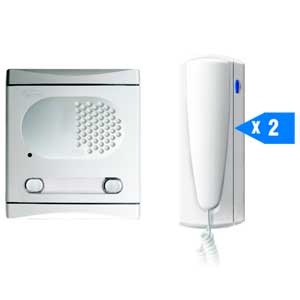

The Stadio kit is a standard 5 wire audio entry system
with 1 or 2 button front panels and an aluminium finish front panel |
  |
|
|
|
 |
The new Villas 1 button audio entry system operates on a 2
wire format |
|
|
|
|
     |
|
|
|
|
Multi way and coded front panels are available in the Rock
(anti vandal) and the Stadio range. Larger systems can be formed with the
modular Stadio panel. |
|
|
|
|
Access Control |
|
|
|
|
|
|
 |
|

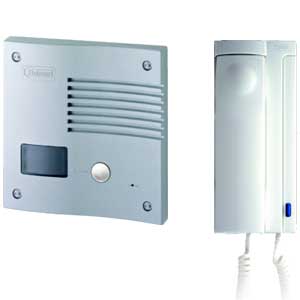

1-way audio (4+'n') kit with stand alone access control
through numeric keypad allows up to 3 telephones inside the same apartment with
electronic call and acoustic acknowledgement signal at the door panel when
calling internal handsets. Illumination at the door panel for night time
operation
This kits include a telephone (T-902) with an additional push button with
potential free contact.
Fully compatible with T-900. Telephone, can be used with 12V a.c. lock releases.
Embedding box and rain shields fully compatible with Stadio modules |
|
|
|
|
 |
|

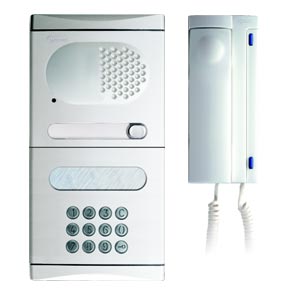

The stand alone access control kit is programmed through
the keypad, with acoustic acknowledgement signal on each push of the stainless
steel covered buttons. It can be combined with Stadio digital panels (audio or
video) and analogue units (4+n).
4, 5 or 6 digit programmable codes with 2 output relays. A total of 8 codes can
be stored each one has an independent panic code.
One code can be used to activate more than one relay.
Relay 1: n/c or n/o, single shot or estable software programmable.
Relay 2: single shot with three contacts (n/c or n/o).
Programmable activation time from 0 to 20 seconds in single shot mode.
After entering 3 wrong consecutive codes, in a period of less than 15 seconds,
the access control is disabled for 3 minutes. After this time, if 3 wrong
consecutive codes are entered again, the disabled time is doubled up to a
maximum of 12 minutes.
Operates on 12 VDC input. |
|
|
|
 |
The proximity module has a 7cm read distance using ISOPROX
or KEYPROX proximity tags.
Up to 500 users in one or several memory addresses.
System programming through the internal keypad. A PIN code is required for
system management.
Seven segments memory display.
1 output single shot relay of 3 seconds activation time.
Embedding box and rain shield compatible with Stadio modules. |
|
|
